README.md

Engine Top Hat for SH-ESP32

This repository contains the hardware design files for the Engine Top Hat for SH-ESP32 (Engine Hat for short).

Engine Hat is a add-on circuit board that provides useful circuitry for connecting tachometers (RPM sensors), tank level sensors and engine alarms to an SH-ESP32.

The SH-ESP32 Engine Hat will be eventually available for purchase at hatlabs.fi.

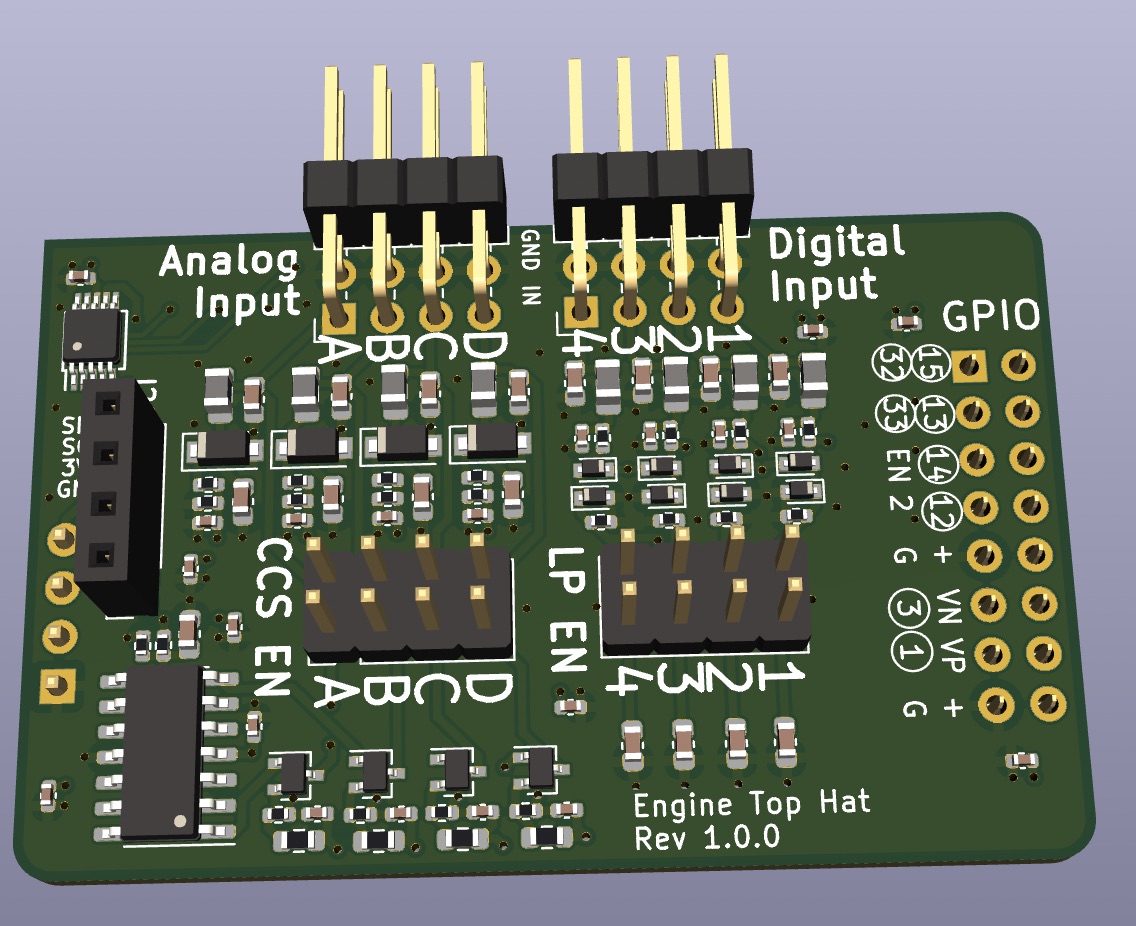

Top view:

Rev 1.0.0 board, top view

Bottom view:

Rev 1.0.0 board, bottom view

Description
Engine Top Hat for SH-ESP32 hardware design files
